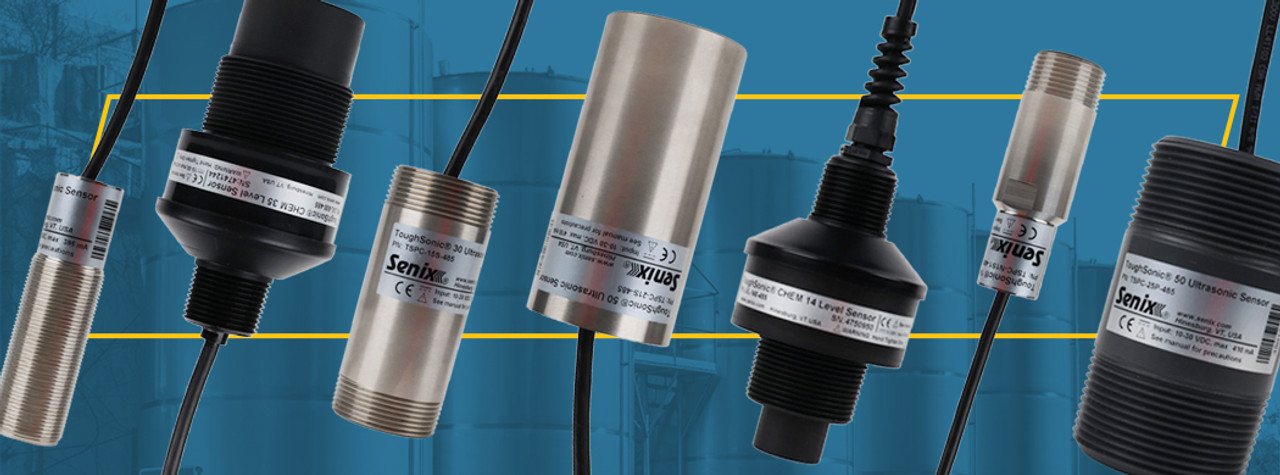

Ultrasonic Level & Distance Sensors
For general distance ranging and benign liquid level applications, including irrigation, flood monitoring, dimensioning, object detection or selection, roll diameter and general industrial automation.
Application
General, indoor & outdoor
Maximum Range Model
50 ft (15.2 m)
Environmental
Temp: -40 to +70C operating
Humidity: 0-100% RH
IP68 ingress protection
Compliance
CE
Housings
Stainless steel type 316
and one PVC
Outputs & Interfaces
2 and 5 output models
Voltage, current, switch(es)
Serial data RS-232 or RS-485
Adjustment
SenixVIEW, models up to 30-ft (9.1 m) max
range are also push-button “teachable”
Cable
6.5 ft (2 m) pigtail

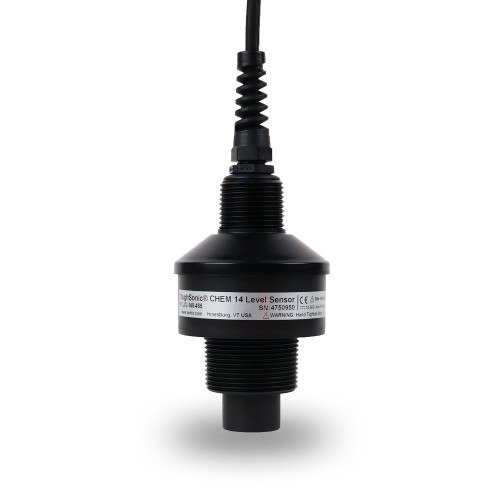

For measuring the level or volume of liquid chemicals in open or closed tanks. Applications include inventory, batch control, high or low alarms and the pickup or delivery of chemical products.
Application
Chemical tanks & environments
Maximum Range Model
35 ft (10.7 m)
Environmental
Temp: -40 to +70C operating
Humidity: 0-100% RH
IP68 ingress protection
Compliance
CE
Housings
Kynar® (PVDF)
Injection moulded
Outputs & Interfaces
5 outputs
Voltage, current loops, switches
Serial data RS-232 or RS-485
Adjustment
SenixVIEW only
No indicators or push-button
Cable
6.5 ft (2 m) pigtail
Intrinsically safe loop-powered sensor for measuring the level or volume of liquids that exist in a hazardous rated area, or for measuring the distance to objects located in a hazardous rated area.
Application
Hazardous area environments
Maximum Range Model
25 ft (7.62 m)
Environmental
Temp: -40 to +60C operating
Humidity: 0-100% RH
IP65 ingress protection
Compliance
CSA certified for CID1 environments
Housing
PVDF transducer & threads (lower)
PET upper housing
Outputs & Interfaces
4-20 mA current loop
2-Wire Loop Powered
Intrinsically safe
Adjustment
SenixSAFE used from
non-hazardous side of barrier
Cable or Connector
Connector or cable length options
