These rugged, compact ultrasonic sensors live up to the “ToughSonic” name. Versatile liquid level sensors feature heavy-duty electronics that are epoxy potted into 316 stainless steel housings.

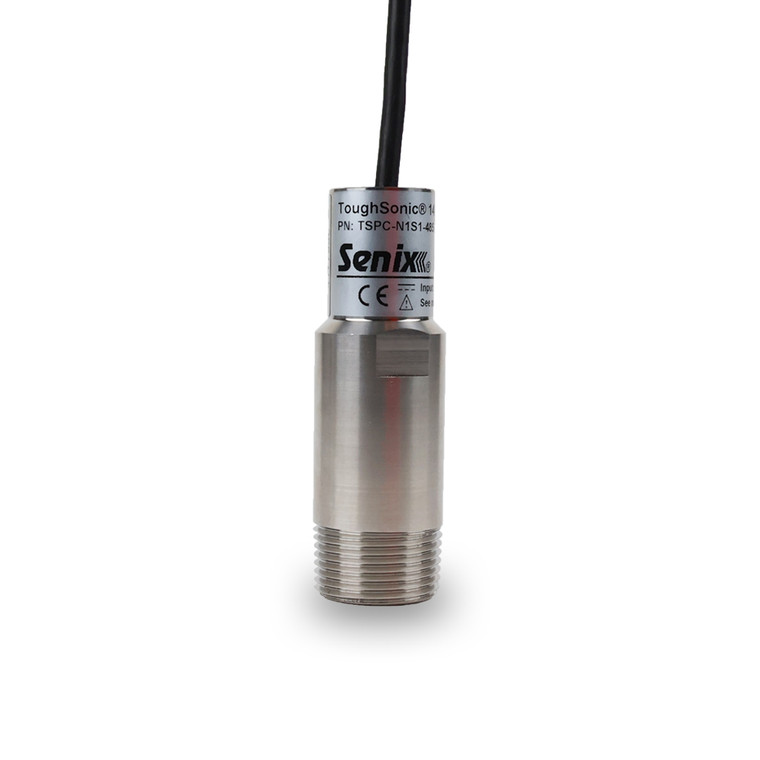

The TS-100 features permanently attached cables and rugged piezoelectric transducers. Use the TS-100 to monitor & control water and benign liquid levels, measure distances, or detect objects.
Versatile Measurement Capabilities: Accurately measure distances, detect objects, and monitor water and benign liquid levels.
Robust Construction: Built to withstand harsh conditions, making them ideal for both indoor and outdoor use.
Wide Operating Temperature Range: Function effectively in temperatures from -40 to +70°C.
High Ingress Protection: Rated IP68, NEMA-4X, and NEMA-6P for superior resistance against dust and water ingress.
User-Friendly Adjustments: Easily configure settings with the included SensorView™ software for setup, testing, and cloning sensors.
Advanced Features of TS-100 Ultrasonic Sensors
Extended Range, Minimal Dead Zone: Achieve precise distance measurements with a long-range capability and a short dead band.
Reliable in Any Environment: Unaffected by optical factors such as color, transparency, or lighting conditions.
Easy Setup & Calibration: Configure effortlessly via PC or onboard button for quick deployment.
Adjustable Sensitivity: Fine-tune detection for precise performance.
Built-in Temperature Compensation: Ensures accurate readings across fluctuating temperatures.
Benefits of this Easy-to-Use Ultrasonic Sensor
Fast & Simple Installation: Mount with ease for quick deployment in any application.
Rugged, Sealed Housing: Designed for wet, dirty, and harsh environments.
Reliable I/O Protection: Features short-circuit and overload protection for enhanced durability.
Multi-Sensor Synchronization: Operate multiple sensors without interference.
Non-Contact: Accurately measure levels and distances without touching the material being measured.
Rear Status Indicators: Easily monitor sensor operation and diagnostics, or reset default setup using a rear push-button (N/A on TS-100.50), or the push-button can be disabled.
Common Applications for TS-100 General-Purpose Sensors
Tank Level Measurement: Accurately monitor liquid levels in tanks containing benign fluids.
Open Channel Flow Monitoring: Ideal for flow measurement in flumes, weirs, and open channels.
Roll Diameter Measurement: Precisely gauge material roll diameters for manufacturing and processing.
Loop Control & Slack Detection: Maintain optimal material tension in production lines.
Object Detection & Presence Sensing: Verify object presence or absence in designated areas.
Relative Positioning: Measure an object’s position relative to a fixed reference point for automation and alignment.
Maximum Range | 14 feet (4.3 meters) |
Optimum Range | 10 feet (3 meters) |
Deadband | 0-4 in (0-102 mm) |
Temperature | -40° to 158°F (-40° to 70°C) |
Humidity | 0 to 100% operating |
Protection | NEMA-4X, NEMA 6P, IP68 |
Transducer | Ruggedized piezoelectric |
Compensation | Temperature compensated (selectable in SensorView™) |
Resolution | Serial data: 0.0034 in.
(0.086 mm) Analog steps: 4099 (0-10 VDC), 3279 (4-20 mA) |
Repeatability | Nominal 0.2% of range @ constant temp. Affected by target, distance, environment |
Update Rate | 20 Hz (50 ms), SensorView adjustable; affected by SensorView filter selections |
Outputs
Output #1 | Default: 4-20 mA; SensorView configurable Alternate: Configure it as a switch output |
Output #2 | Default: Voltage, SensorView configurable Alternate: Configure it as a switch output |
Voltage Output | 0-10, 0-5 VDC or SensorView configurable 10 mA maximum |
4-20 mA Current Loop |
Current sourcing, SensorView configurable Maximum loop resistance 450Ω |
Switch Output(s) | Output #1 and/or #2 can be a switch Each can be sinking (NPN) or sourcing (PNP) Max ratings: 150 mA @ 40 VDC Each has adjustable setpoint, polarity, hysteresis, window, time delays and more |
RS-232 or RS-485 | Modbus & streaming protocols 9600-115200 baud (configurable) 8 data bits, 1 stop, no parity RS-485 permits multi-sensor networks Part number determines interface |
Sync Feature | Permits multiple sensors to operate in close proximity without cross-talk Not usable concurrently with serial data |
Mechanical
Housing | 316 stainless steel for corrosion resistance Usable in salt water, H2S environments |
Mounting (30 mm) |
Through hole in bracket or panel Two jam nuts included Stainless & nylon brackets available Adapters to 1-1/2 in and 2 in NPT available |
Mounting (1-in NPT) |
Typically for tank mounting Mates with 1-in NPT female thread |
Attached Cable | 6.5 feet (2 meters), PUR jacketed Custom lengths available Standard models: 6-wire shielded + drain Serial data only models: 4-wire + drain |
Total Weight | 30 mm: 10.4 oz. (0.29 kg) 1-in NPT: 14.2 oz. (0.40 kg) Weights include 2 m cable |
*Specifications are subject to change without notice.
