Object Detection Sensor Applications

Senix ToughSonic® Ultrasonic Sensors detect objects or materials through the air using “non-contact” technology. They are easy to use and reliable. Most materials can be detected: hard or soft, any color or transparency, flat or curved. Unlike traditional proximity sensors, they operate over longer distances and can be set up to limit object detection within a user-specified distance band (“window”).

Presence/Absence

Object detection is a form of proximity sensing to determine if an object or material is present (arrives) or absent (disappears).

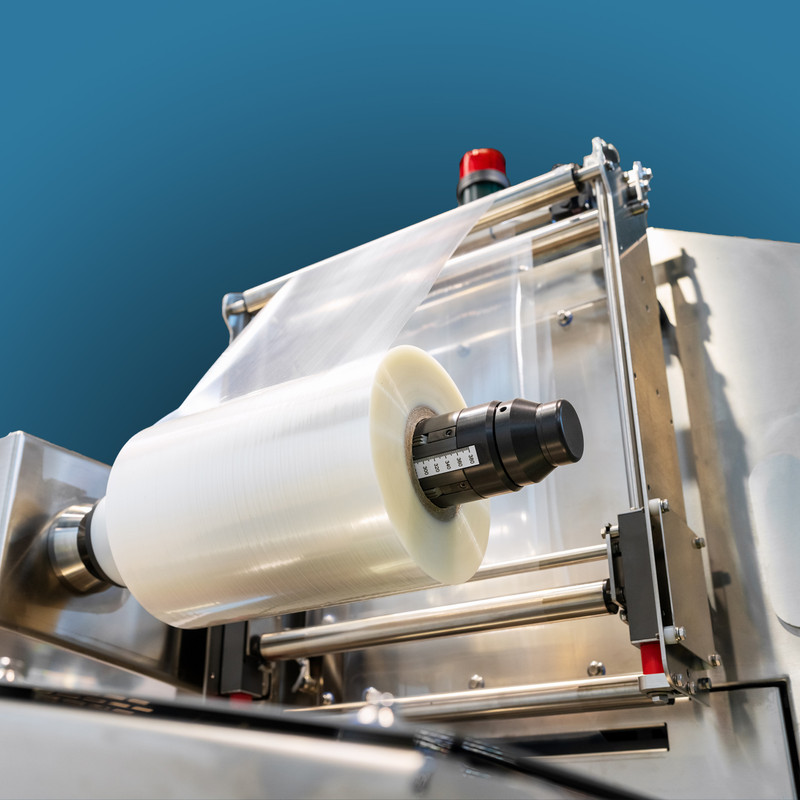

ultrasonic sensor detecting a web of material to monitor for breakage

Web Break

Printing & Converting

UItrasonic object detection sensor

Counting & Controlling

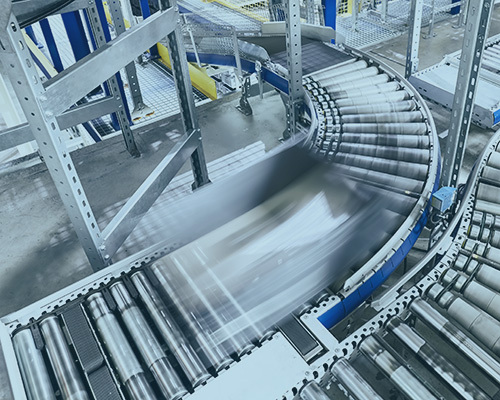

Material Handling

Ultrasonic sensor detecting the presence of a human

People Detection

Kiosks & Displays

Ultrasonic sensor detecting the presence of a truck at a loading dock

Warnings

Transportation

Robot using 360 degree ultrasonic sensor coverage for object detection

Avoidance

Transportation

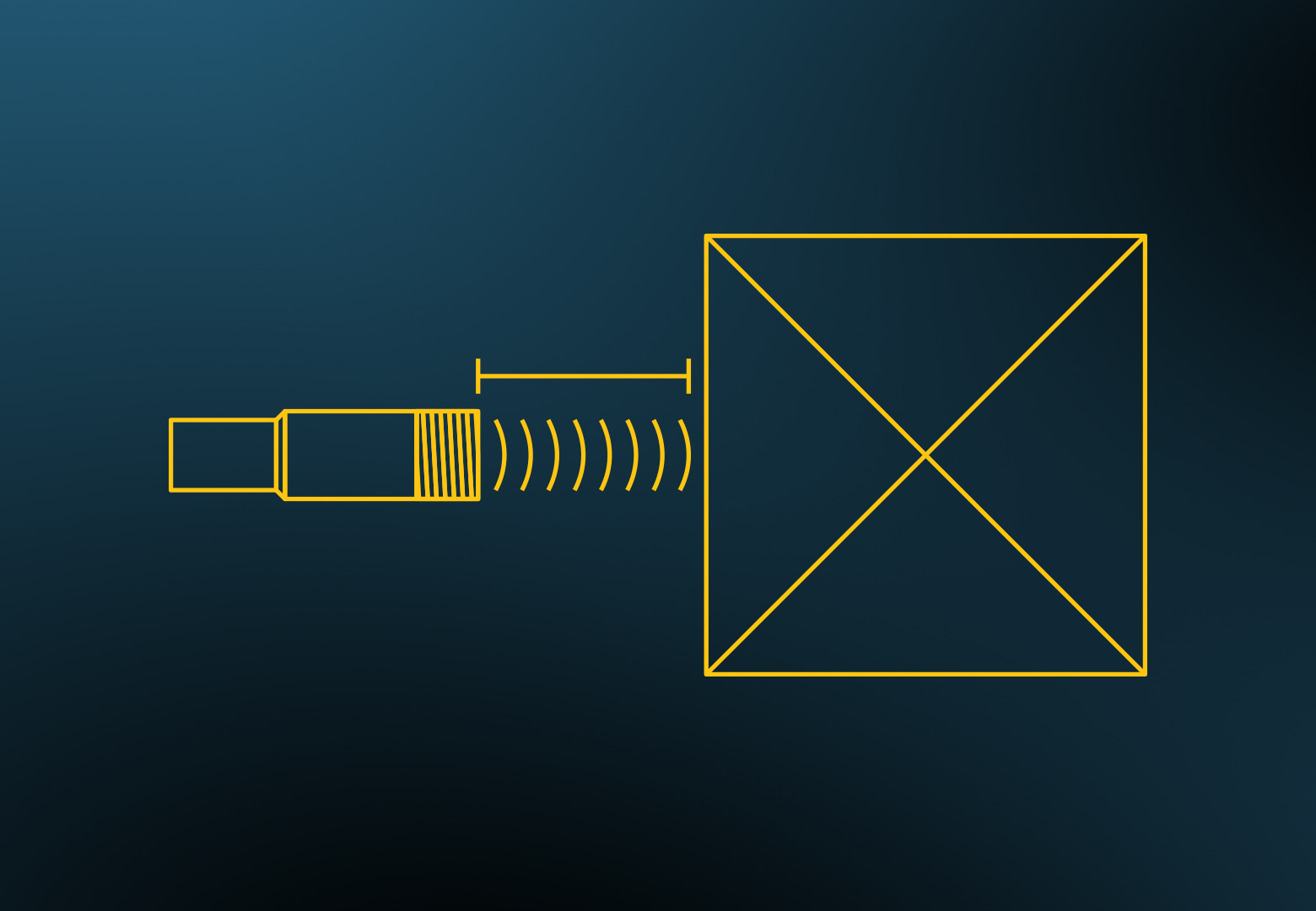

Distance Discrimination

Senix ultrasonic sensors can be configured to restrict object detection to a user-configurable range of distances. They can also be configured to establish a single maximum range of detection within the sensor’s maximum range. This allows the sensor to ignore further objects that may be permanently or intermittently within the sensor’s maximum range.

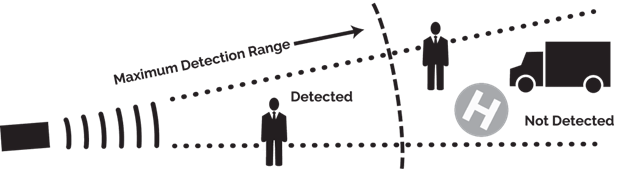

Chart showing object detection range of ultrasonic sensors

object detection on fork lift using ultrasonic sensors

What our customers say…

USDA logo

Excellent service as always.  I already have the kit and it updated the firmware without a problem. Thanks again.

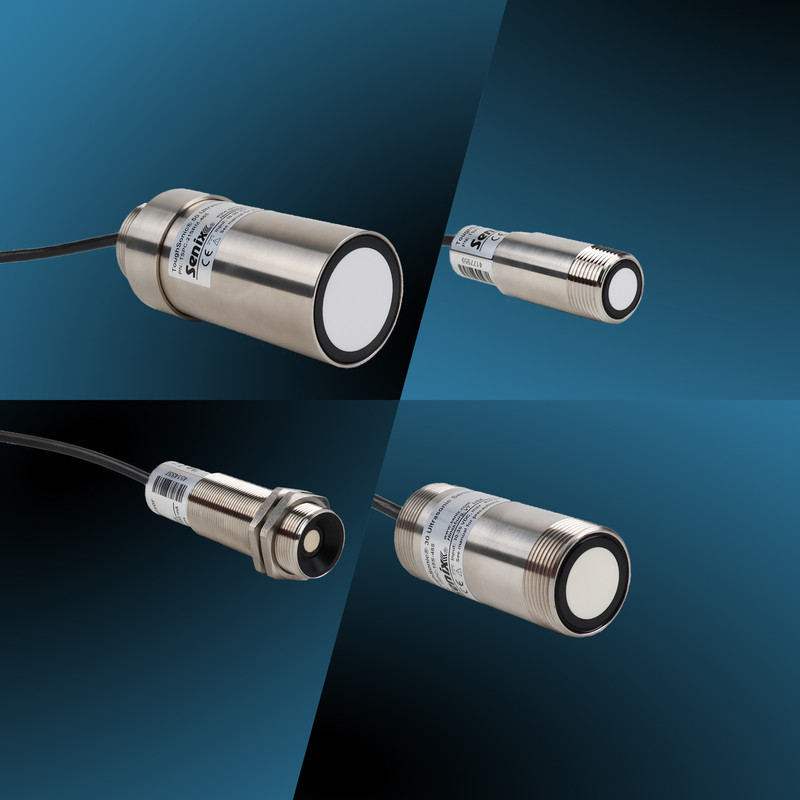

Whether used indoors or out, ToughSonic sensors can take abuse. Rugged electronic components are epoxy potted into small stainless steel housings, and there are no mechanical parts to break. IEC compliant electrical interfaces are protected from reversed connections and overvoltages.

These proximity sensors easily connect with all common automation equipment. Applications range from simple ON/OFF switches to relay connections, PLC inputs and multi-sensor detection networks. They are cost effective, with many user-adjustable features built into the sensor’s software – power that you can unlock with our SenixVIEW PC software.

Object Detection Applications
Ultrasonic proximity sensors are found in applications where the presence or absence of a material, object or person is important in the control of a machine or process. They are commonly found in printing, converting, robotics, material handling and transportation industries.

Tough:

  • Type 316 stainless steel housings.
  • Sealed epoxy potted construction.
  • Ruggedized piezoelectric ultrasonic transducers, potted in place.
  • Liquid tight IP68 immersion rating.
  • IEC compliant electrical interface protection.
  • Hardened ToughSonic internal electronics.
  • UV-resistant, potted-in cable.
  • CE compliant.

Smart:

  • Two switch outputs, each with window, hysteresis and timing adjustments.
  • Each switch can be either PNP or NPN.
  • Distance window and lost target features.
  • Other simultaneous outputs also provided.
  • Measurement rates up to 200 Hz.
  • Adjust, optimize and manage setups with SenixVIEW PC software (included).
  • Connect remotely to, and work safely with, sensors embedded in an application.
  • Adjustable filters and timers help optimize dynamic response.
  • Multi-sensor networks & crosstalk protection.
  • Quick duplication without recalibration.
  • Push-button teachable.
