ToughSonic 100

ToughSonic® 100 50' Range, Clamp Connection

Product code: TS-100.50-clamp
Minimum Purchase: 1 unit
Bulk Pricing:
Buy in bulk and save
Max Measuring Distance: 50 ft (15.2 m)
Optimum Measuring Distance: 33 ft (10 m)
Deadband: 0-12 in (0-303 mm)
Temperature Range: -40° to 158° F (-40° to 70° C)
Protection: NEMA 4X, IP 68, NEMA 6P
Area Classification: Ordinary Locations
Cable Length: 6.5 feet
Mount: Clamp
Dimensions (L X Dia): 4.8 in (122 mm) x 2.312 in (59mm)
Housing: 316 Stainless Steel
$753.00 - $793.00

These rugged, compact ultrasonic sensors live up to the “ToughSonic” name. Versatile liquid level sensors feature heavy-duty electronics that are epo…

Adding to cart… The item has been added

These rugged, compact ultrasonic sensors live up to the “ToughSonic” name. Versatile liquid level sensors feature heavy-duty electronics that are epoxy potted into 316 stainless steel housings.

The TS-100 features permanently attached cables and rugged piezoelectric transducers. Use the TS-100 to monitor & control water and benign liquid levels, measure distances, or detect objects.

Versatile Measurement Capabilities: Accurately measure distances, detect objects, and monitor water and benign liquid levels.
Robust Construction: Built to withstand harsh conditions, making them ideal for both indoor and outdoor use.
Wide Operating Temperature Range: Function effectively in temperatures from -40 to +70°C.
High Ingress Protection: Rated IP68, NEMA-4X, and NEMA-6P for superior resistance against dust and water ingress.
User-Friendly Adjustments: Easily configure settings with the included SensorView™ software for setup, testing, and cloning sensors.

ToughSonic Applications

Advanced Features of TS-100 Ultrasonic Sensors
Extended Range, Minimal Dead Zone: Achieve precise distance measurements with a long-range capability and a short dead band.
Reliable in Any Environment: Unaffected by optical factors such as color, transparency, or lighting conditions.
Easy Setup & Calibration: Configure effortlessly via PC or onboard button for quick deployment.
Adjustable Sensitivity: Fine-tune detection for precise performance.
Built-in Temperature Compensation: Ensures accurate readings across fluctuating temperatures.

Benefits of this Easy-to-Use Ultrasonic Sensor
Fast & Simple Installation: Mount with ease for quick deployment in any application.
Rugged, Sealed Housing: Designed for wet, dirty, and harsh environments.
Reliable I/O Protection: Features short-circuit and overload protection for enhanced durability.
Multi-Sensor Synchronization: Operate multiple sensors without interference.
Non-Contact: Accurately measure levels and distances without touching the material being measured.
Rear Status Indicators: Easily monitor sensor operation and diagnostics, or reset default setup using a rear push-button (N/A on TS-100.50), or the push-button can be disabled.

Common Applications for TS-100 General-Purpose Sensors

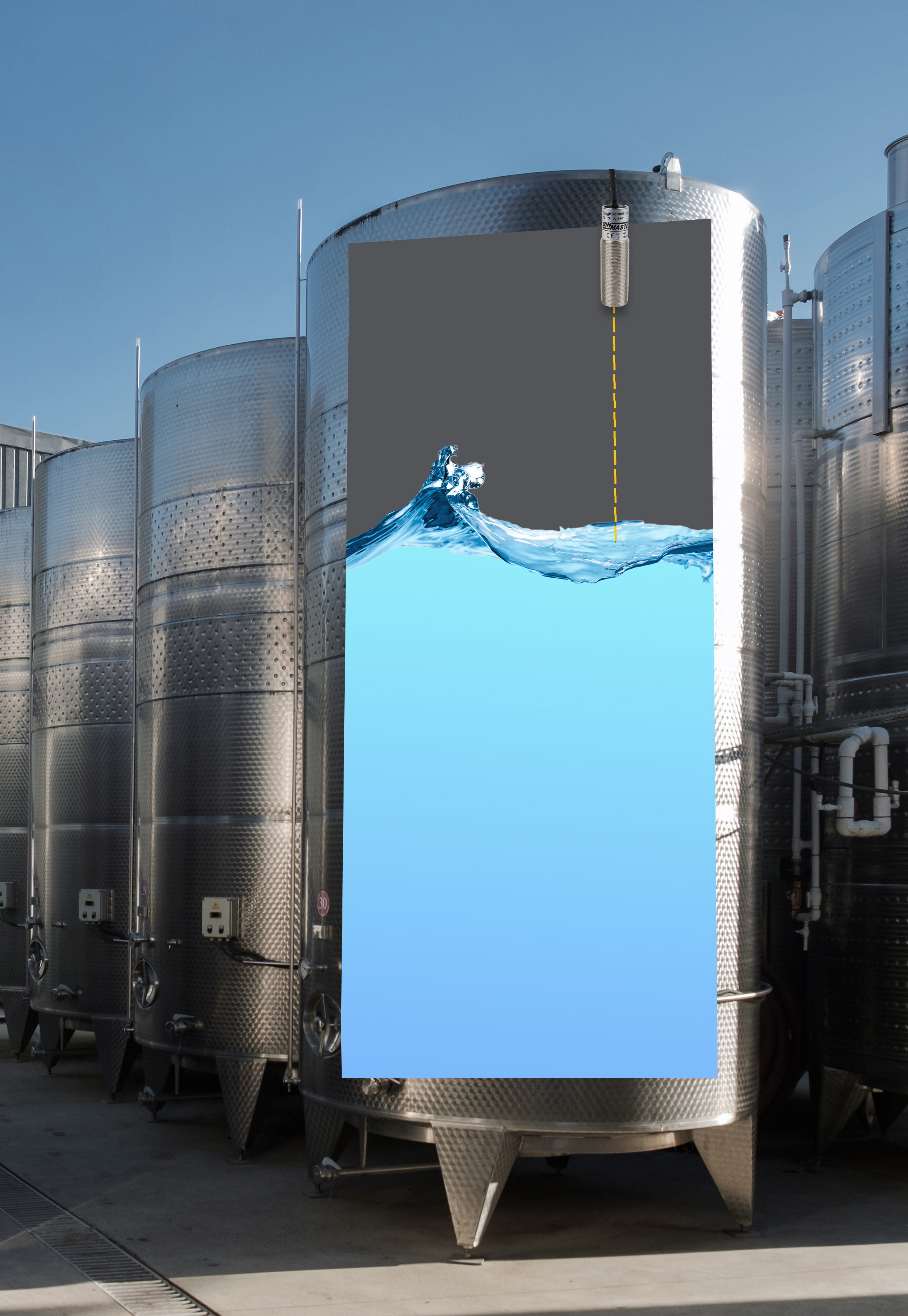

Tank Level Measurement: Accurately monitor liquid levels in tanks containing benign fluids.
Open Channel Flow Monitoring: Ideal for flow measurement in flumes, weirs, and open channels.
Roll Diameter Measurement: Precisely gauge material roll diameters for manufacturing and processing.
Loop Control & Slack Detection: Maintain optimal material tension in production lines.
Object Detection & Presence Sensing: Verify object presence or absence in designated areas.
Relative Positioning: Measure an object’s position relative to a fixed reference point for automation and alignment.



Maximum Range 50 feet (15.2 meters)
Optimum Range 33 ft (10 m)
Deadband 0-12 in (0-303 mm)
Temperature -40° to 158°F (-40° to 70°C)
Humidity 0 to 100% operating
Protection NEMA-4X, NEMA 6P, IP68
Transducer Ruggedized piezoelectric
Compensation Temperature compensated (selectable in SensorView™)
Resolution Serial data: 0.0135 in. (0.3438 mm)
Analog steps: 4099 (0-10 VDC),
3279 (4-20 mA)
Repeatability Nominal 0.2% of range @ constant temp.
Affected by target, distance, environment
Update Rate 5 Hz (200 ms), SensorView adjustable; affected by SensorView filter selections


Outputs

Output #1 Current sourcing 4-20 mA or SensorView adjustable, max. loop 450Ω
Output #2 Current sinking 4-20 mA or SensorView adjustable, max. loop 450Ω
Voltage Output 0-10, 0-5 VDC or SensorView customized
10 mA maximum
4-20 mA
Current Loop
Switch Output(s) 150 mA max. @ 40 VDC max.,
SensorView selected as sinking (NPN) or sourcing (PNP)
Each with adjustable set point, polarity, hysteresis & time delays
RS-232 or RS-485 Modbus & streaming protocols
9600-115200 baud (selectable)
8 data bits, 1 stop, no parity
Model number determines interface
Sync Feature Permits up to 32 sensors to operate in close proximity without interference
Not usable with serial data only models


Mechanical

Housing 316 stainless steel
Mounting
(30 mm)
Mounting
(1-in NPT)
2.3 inch clamp, 1.5 inch NPT or 2.5 inch NPT
Attached Cable 6.5 feet (2 meters)
Custom lengths available
Total Weight 22.6 oz. (0.64 kg)


*Specifications are subject to change without notice.

ToughSonic®-100.50 Level Sensor Data Sheet

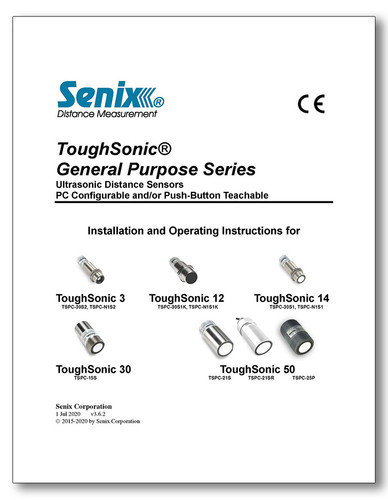

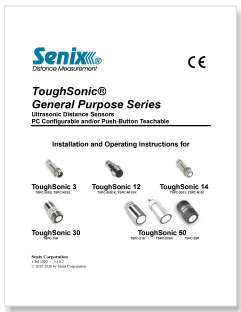

ToughSonic® General Purpose Sensors Manual
