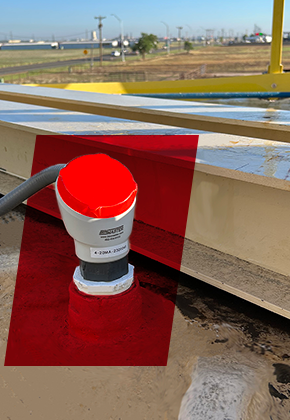

CNCR-230 Radar Level Sensor with Integrated Display (49 ft Range)
The CNCR-230 compact non-contact radar sensor offers accurate level measurement up to 49 ft (15 m) with the added convenience of an integrated window display. Using advanced 80 GHz radar technology, it provides reliable, non-contact measurement for liquids and solids—even in challenging conditions.
The built-in display allows operators to view level readings directly at the sensor, making it ideal for local monitoring and quick diagnostics in the field.
Built-In Display for On-Site Visibility
- Measures up to 49 ft (15 m)
- Integrated display for real-time level indication at the sensor
- 1.5” NPT threaded mounting for fast installation
- Ideal for applications requiring local readout and troubleshooting
Key Features & Benefits
- 80 GHz radar for precise, focused measurement (+/- 0.2”)
- Onboard display window for instant level visibility
- Immune to condensation, foam, turbulence, and temperature changes
- No dead zone—measures to the sensor face
- Durable IP66/IP67, Type 4X PVDF enclosure
- Bluetooth setup plus two-wire 4-20 mA output
Ideal Applications
- Tanks requiring local level indication
- Remote sites without constant system access
- Chemical and industrial process tanks
- Water, wastewater, and environmental monitoring
| Maximum Range | 49 ft. (15 m) for liquids; 25 ft. (7 m) for solids |
| Optimum Range | 0 inches to 32.81 ft. (10 m) |
| Deadband | N/A |
| Temperature | -40° to 176°F (-40° to 80°C) |
| Humidity | 0 to 100% operating |
| Protection | IP 66, IP 67 |
| Voltage | 12-35 VDC |
| Voltage Output | Loop-powered 4–20 mA |
| Accuracy | ±0.2 inches (5 mm) |
| Frequency | 80 GHz radar wave |
| Approvals | Ordinary locations |
Mechanical
| Housing | Polyvinylidene fluoride (PVDF) with FKM seal for heat and chemical resistance |
| Mounting |
1.5 inch threaded or straight NPT connection |
| Cable | Not included |
| Total Weight | 20 oz (0.57 kg) |
*Specifications are subject to change without notice.
