About the ToughSonic®-200.20

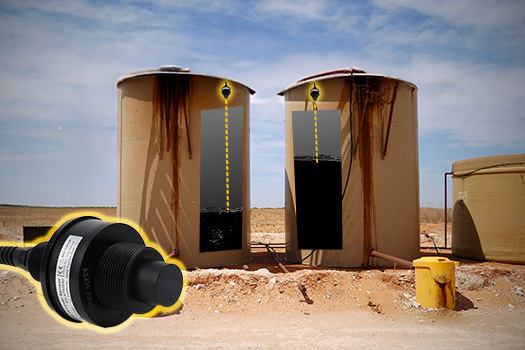

ToughSonic®-200 ultrasonic sensors are an economical solution for liquid level measurement of acids, bases, and chemical tanks. The chemical-resistant transmitters include heavy-duty electronics and a ruggedized piezoelectric transducer housed in a rugged polyvinylidene fluoride (Kynar®) enclosure.

The TS-200 series measures a variety of volatile and non-volatile liquids: diesel and oils in fuel storage tanks, chemicals utilized in the paper and food processing industries, agrichemicals used on fields, and benign liquid level applications.

ToughSonic chemical sensors also provide the same reliable functionality of their general-purpose counterparts: distance ranging, flood monitoring, proximity detection, and pump and valve automation, even in the harshest industrial environments.

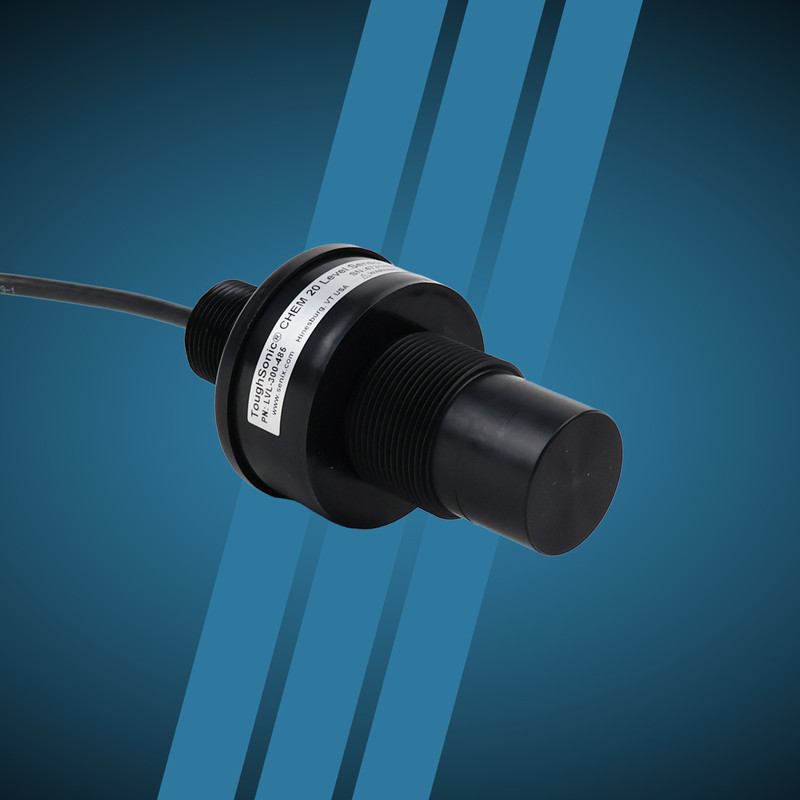

Advanced Features of the TS-200.20

TS-200 ultrasonics sensors are built for dependability and long-term chemical exposure with PVDF housings, heavy-duty electronics, and isolated transducers.

TS-200.20 ensures precise, non-contact level measurement of acids, bases, fuels, cleaning agents, and other volatile liquids used during processing.

Chemical-resistant sensors also offer reliable industrial control in object detection, printing, vehicle proximity, and pump or valve automation applications.

Proven Measurements: Sensors are unaffected by the color, density, transparency, or reflectivity of liquids or targets
Built-In Climate Controls: Integrated temperature sensor and optional temperature compensation accessories ensure continuous accuracy
Seamless Integration: Connect ultrasonic sensors with SCADA systems, GIS monitoring, industrial PLCs, or site controls
Designed for Versatility: Personalized configuration and straightforward technology enables use in virtually any industry

Browse Chemical-Resistant Sensors

TS-200.20 ultrasonic sensors offer an expanded range of measurement to fit additional tank configurations and environmental monitoring applications.

Open Channel Flow

Monitor waterways containing industrial effluent or agricultural runoff. Alert to dangerous overflows or mitigate stormwater during floods.

Chemical Inventory Monitoring

Continuously measure liquid inventory levels of chemicals stored in tanks, portable storage containers, or agriculture machinery sprayers.

Tank Level Automation

Connect ultrasonic sensors with industrial pump controls or ON/OFF switches. Automate filling or emptying of process tanks and storage vessels.

Flexible Ultrasonic Communications

ToughSonic-200 sensors include serial data, three analog outputs, and two switches for ease of sensor and system connectivity.

RS-232 or RS-485 Format

Selectable Modbus (Default) or ASCII streaming protocols
Baud rates from 9600 (Default) to 115200 bps
Many more features adjustable using SensorView™ software

RS-485 Serial Data Interface

Multi-drop Modbus addressing supports sensor "SYNC" mode
Better noise immunity in industrial environments
Allows longer cable lengths at higher baud rates

Multiple Outputs for Peak Connectivity

Analog 0-10 VDC with motor drives & similar equipment
Switches configurable as Sinking (NPN) or Sourcing (PNP)
Two analog 4-20 mA current loops (sourcing and sinking) for process industry transmitter applications

Automated Chemical Inventory Management

Pair ToughSonic ultrasonic sensors with BinCloud® inventory monitoring software for advanced data insights, historical reports, usage forecasts, and so much more.

BinCloud enables liquid level visibility from a phone, tablet, or PC. Access real-time tank levels and view water monitoring stations during droughts or flash floods.

Configure automated high or low-level alerts to send via email or text; know when to replenish inventory
See level updates in real-time when pump controls in tanks/gates in waterways are activated
Intuitive MultiView interface displays all sensors, vessels, and worksite locations for operational oversight
Export historical reports to Excel or PDF for logistics, fulfillment, maintenance, or financial planning
Identify trends to schedule future orders or conduct proactive mitigation planning

Choose Remote Monitoring Software

Meet SensorView™, Senix's proprietary software for ultrasonic sensor configuration and comprehensive data analysis.

The PC-based SensorView platform is included FREE with the purchase of every ToughSonic ultrasonic sensor. Fine-tune over 80 sensor settings to best fit each sensor to your application.

Robust PC Configuration

General-purpose and chemical-resistant ToughSonic sensors easily connect to SensorView software via a serial data port.

This enables ultrasonic configuration without having to remove the sensor from its vessel, bracket, or tank.

SensorView keeps workers protected from chemical exposure and eliminates the need to navigate remote, potentially hazardous locations to make adjustments.

Adjust Analogs: Slope, distance endpoints, & analog value limits
Customize Switches: Set points, window, and time delays
Control Outputs: Responses for power on, loss of ultrasonic echo, and loss of sync
Utilize Serial Data: Activate modes of sensor communication, including group control and synchronized networks
Set Filters: Temperature compensation, measurement rate, gain settings, and data processing filters

Discover SensorView™ Software

Chemical Pulping

Measure reactants and aqueous chemicals used during treatment and processing in the wood, pulp, and paper industries.

Sanitary Manufacturing

Manage food-grade additive inventory, including bleaching agents, preservatives, citric acids, flavorings, and dyes.

Chemical Processing

Continuously monitor levels in bulk storage tanks, industrial bulk containers, or chemical drums. Real-time tracking during fast-paced processing.

Open-Air Measurement

TS-200 sensors brave severe weather and temperature extremes to deliver consistently accurate environmental measurements.

Plastic Resin Inventory

Measure and manage liquid resins at one location or across multi-site plastics operations: plasticizers, epoxies, silicones, and polyurethanes.
