Monitor levels in harsh saltwater environments, wastewater reservoir outflow and stabilization ponds, and agriculture runoff channels.
Short-Range, Chemical-Resistant Ultrasonic sensors

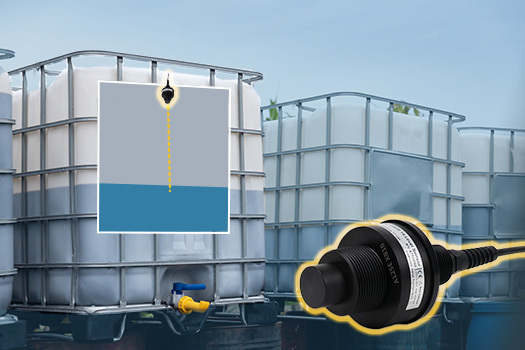

About the ToughSonic®-200.14
Acids, bases, and chemical tanks of all kinds meet their match versus the ToughSonic®-200 series. The chemical-resistant ultrasonic sensor design includes heavy-duty electronics and a ruggedized transducer protected in a rugged polyvinylidene fluoride (Kynar®) housing.
TS-200 ultrasonic sensors measure a variety of corrosive liquids: diesel fuel in rail locomotives and storage tanks, chemicals in the paper and food processing industries, pesticides and fertillizers utilized in agriculture, and benign liquid level applications.
ToughSonic chemical sensors also provide the same reliable functionality of their general-purpose counterparts for precise distance ranging, proactive flood monitoring, proximity and object detection, roll diameter, and general industrial automation in harsh environments.

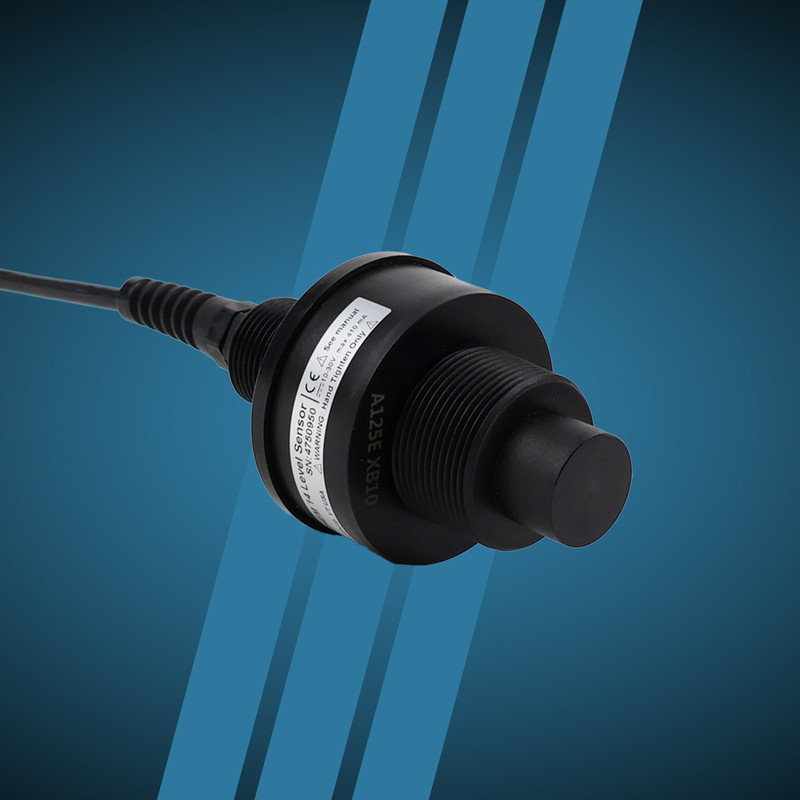

Advanced Features of the TS-200.14
The TS-200 series is built tough with a chemical-resistant PVDF housing, epoxy-potted heavy-duty electronics, and isolated transducers.
Senix sensors are built to withstand exposure to acids, bases, fuels, and other aggressive liquids used in processing.
The TS-200.14 delivers precise short-to-mid-range performance in harsh industrial environments where other sensors fail.
- Minimal Deadband: Enables additional range that would otherwise be off-limits for level and distance measurement
- Flexible Connectivity: TS-200 models support industrial networking, plus serial data for system integration
- Well-Suited for Industry: Rated IP68, NEMA-4X, and NEMA-6P for dependability in indoor and environmental conditions
- Versatile Mounting: Standard 1" NPT upper and 1.5" NPT lower threads simplify installation
Common Applications for Chemical-Resistant Sensors
Senix's ToughSonic-200 sensors offer accurate, non-contact level and distance measurements where superior resistance against harsh chemicals or volatile liquids is required.
Chemical Measurement
Measure chemical inventory in storage containers holding industrial fluids like coolants, cleaners, lubricants, and degreasers.
Tank Level Monitoring
Ensure chemicals and precipitants are dosed properly in conditioning tanks and process vessels for safe, optimal concentration.
Smart Sensor Communications
ToughSonic-200.14 sensors are available in RS-232 or RS-485 formats that include both analog outputs and serial communications.
RS-232 or RS-485 Format
- Selectable Modbus (Default) or ASCII streaming protocols
- Baud rates from 9600 (Default) to 115200 bps
- Many more features adjustable using SensorView™ software
RS-485 Serial Data Interface
- Multi-drop Modbus addressing permits up to 32 sensors to operate in one network
- Better noise immunity in industrial environments
- Allows longer cable lengths at higher baud rates
Multiple Outputs for Peak Connectivity
- Analog 0-10 VDC with motor drives & similar equipment
- Switches configurable as Sinking (NPN) or Sourcing (PNP)
- Two analog 4-20 mA current loops (sourcing and sinking) for process industry transmitter applications
Real-Time Data Integration
Senix's chemical-resistant TS-200 sensors include easy integration with industrial automation equipment, PLCs, and local controls.
For additional data analysis tools, rely on BinCloud® remote monitoring software to deliver real-time, relevant data to a mobile device or PC.
BinCloud users receive access to a suite of features to drive data-driven decision making:
- View level data from anywhere, at any time—all in one login
- Eliminate spreadsheet management and tedious data management tasks
- Configure critical high or low levels in tanks or at water monitoring stations to receive automated text/email alerts
- Multi-site views provide visibility of one or all tanks or process vessels on one worksite or several locations
- Utilize historical data reports for optimized ordering
- Streamline supply chains & strengthen vendor communication
Secure Sensor Setup for Corrosive Conditions
Senix's general-purpose and chemical-resistant ultrasonic sensors are PC-configurable with the highly versatile SensorView™ software.
TS-200 sensors connect with SensorView via serial data port to view, analyze, and log data. Senix setup kits provide all you'll need to connect through a USB port.
Safer Sensor Configuration with SensorView™
Simple setup for TS-200 sensors keep operators safe from chemical exposure, fumes, and manual adjustments.
With SensorView software, users obtain access to over 80 sensor settings. Completely customize the configuration of your ToughSonic to each unique application, liquid surface, or target of object detection.
- Analogs: Set slope, distance endpoints, and analog value limits
- Switches: Customize set points, window, and time delays
- All Outputs: Power on, loss of echo, and loss of sync responses
- Serial Data: Sensor communications, group control, and synchronized networks
- Measurement Filters: Activate/disable temperature compensation, change measure rate and gain settings, and adjust data processing filters
Key Industries that Utilize TS-200.14 Sensors
Agrichemicals
Measure chemical storage containers and sprayer tanks on agriculture equipment containing fertilizers, pesticides, and herbicides.
Fuel Storage & Transport
Monitor levels of crude oil, diesel, or biofuels stored in fuel tanks during transport. Receive alerts for low levels to prevent out-of-fuel events.
Wastewater Processing
Mount sensors above processing basins, equalization tanks, or effluent treatment areas to ensure proper levels and prevent overflows.
Ethanol & Biodiesel Production
Additional resistance and toughness in harsh biodiesel processing operations. Measure plant oils, used cooking oils, greases, and animal fats.
Industrial Cleaning Agents
Measure disinfectants and acidic chemicals used in clean-in-place operations such as sanitary food, beverage, and pharmaceutical processing.
Chemical Manufacturing
Real-time monitoring in chemical processing and storage tanks of many shapes and sizes: open-top, cone-bottom, rectangular, and cylindrical.
