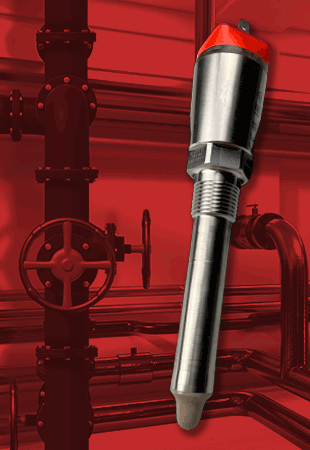

MCP-300 Extended Mini Capacitance Probe
The BinMaster MCP-300 mini capacitance probe features a customizable stainless-steel extension for reliable point-level detection in water-based liquids and pump protection applications. Designed for flexibility, it can be configured in lengths from 2.5” to 9.8” to suit a wide range of vessel depths and mounting requirements.
This makes the MCP-300 ideal for pump rooms, leak detection, and tank monitoring where extended reach is required.
Key Features of the MCP-300 Extended Probe
- Customizable probe length (2.5” to 9.8”) for flexible installation
- Designed for water-based liquids and leak detection
- Stainless-steel extension for durability and corrosion resistance
- Compact electronics with Bluetooth and IO-Link communication
- M12 connection rated IP66/IP67/IP69
- Visual LED status indicators for easy monitoring
Ideal Applications for MCP-300
- Pump rooms and leak detection systems
- Water storage and treatment tanks
- Equipment protection in industrial facilities
- Filtration and separation systems
- Small tanks requiring extended sensing reach
Protect Equipment and Prevent Downtime
The MCP-300 is commonly used to protect pumps from damage caused by low levels or leaks, helping prevent costly downtime and equipment failure. Its extended probe design ensures accurate detection even in deeper or obstructed mounting locations.
Flexible, Compact, and Easy to Configure
Despite its extended reach, the MCP-300 maintains a compact footprint and offers easy setup via Bluetooth or PLC integration using IO-Link, making it a versatile solution for modern process control systems.
| Means of Measurement | Point-level capacitance |
| Medium | Liquids & solids |
| Temperature | -40° to +158°F (-40° to +70°C) |
| Pressure | -1 ... +25 bar |
| Protection | IP 66, IP 67, IP 69 |
| Output | Transistor (NPN/PNP) or IO-Link |
| Approvals | FDA |
Mechanical
| Housing | Stainless steel; plastic |
| Mounting |
0.5" NPT, 0.75" NPT, 1" NPT |
| Total Weight | 16 oz (0.453 kg) |
*Specifications are subject to change without notice.
MCP-300 Manual

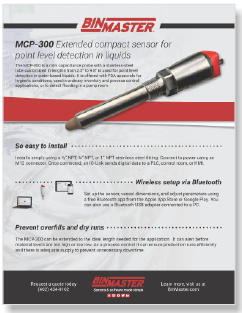

Extended Mini Capacitance Probe Brochure
